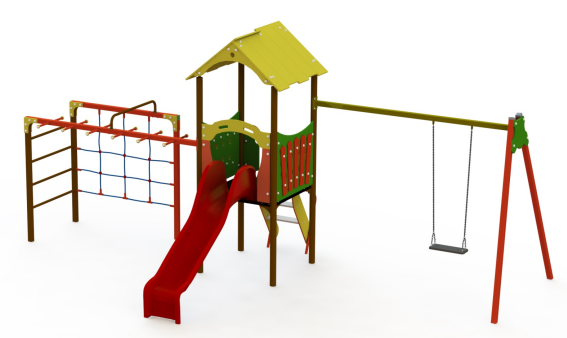

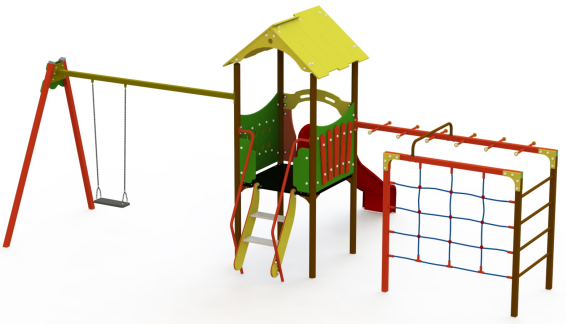

|Nume produs||Ansamblu de joaca multifunctional cu leagan si structura de catarare|
|Activitati||urcare, alunecare, socializare, catarare, leganare, jocuri interactive|
|Interval de varsta||3-12 ani|
|Numar de locuri||4+ locuri|
|Inaltimea maxima de cadere||1.347 mm|
|Structura de baza||tevi de metal|
|Materiale principale utilizate||HDPE, PVC Forex, HEXA|
|Dimensiunile echipamentului||3.601 x 6.309 mm|
|Suprafata de siguranta||7.869 x 8.181 mm|
|Suprafete permise||nisip, pelete de lemn, suprafață de cauciuc care atenuează loviturile – 2mp|
e-mail: firstname.lastname@example.org www.cozirog.com
TECHNICAL SPECIFICATION of equipment for children playground CN-112 Children play unit Flora serie
Сертификат № 0008/24.03.2010г. ISO 14001
Сертификат № 0145/15.09.2015г. BS OHSAS 18001
Сертификат № 0146/15.09.2015г.
page 1 of 4
Dimensions of the equipment CN-112
Safety area dimensions of the equipment
CN-112 - 44,50 m2
www.cozirog.com page 2 of 4
Age range: from 3 to 12 years
The equipment offers the following components for play: climbing / sliding/ communication / teamgames
Maximum fall height: 1 347 mm
Height of the platforms: 980 mm
Equipment dimensions: 3 601 х 6 309 mm
Warranty term: 60 months
Safety area dimensions: 7 869 х 8 181 mm
Admissible surfaces: sand, wood chips, rubber impact absorbing flooring The equipment meets the requirements of:
- Regulation №1 from January 12, 2009 about the conditions and order for organization and safety of playgrounds
- EN 1176-1 Playground equipment and surfacing Part 1: General safety requirements and test methods
- EN 1176-3 Playground equipment and surfacing Part 3: Additional specific safety requirements and test methods for slides
Compulsory parental control of children up to 3 years!
Usage of the equipment is prohibited in cases where the installation on site is not completed, or during disassembly and repair works!
COZIROG - D play units and products are designed and tested so as to ensure maximum fun and safety of children using them. In the design process of the playgrounds, the team is aware that there are enormous requirements on him - from budgetary constraints to individual opportunities and limitations that each site has; from the initial concept to final performance - everything is taken into account. EN 1176 certification
Safety of children using the play equipment is fundamental importance and therefor all of our sites are strictly tested according to the highest European standards. So that yu can be sure that play unit is safe while children spend his best moments. ISO 9001
Upholding typical quality COZIROG - D possess quality management system, which ensures the use of only the high quality raw materials in the manufacture of play equipment and products which aims final product to meet the highest standards. Painting
Equipment designed for outdoors installation and sports equipment are subject to environmental influences for a long time. The way of painting so as to increase the life of the product and to avoid corrosion is a very important process. The metal equipment is initially cleaned in order to remove all the shortcomings of steel. Then it is primed, which serves to smooth the surface and is basis for the final painting. Main stucture
For the structural elements used for our Flora series, metal tubes with diameter Ø76 and thickness 2 mm are used. The platforms are clamped with pre-welded bolts to the main ones columns.
www.cozirog.com page 3 of 4
Platforms and domes
The platforms are made by high-quality waterproof plywood НЕХА, domes are made by PVC foam.
Ladders and climbing frames
Ladders and climbing frames are produced by using of metal profiles or tubes with the necessary size and strength. For making rope ladders steel - cored wire rope is used. Slides
Slides are made of multilayer fiberglass. Fiberglass is resistant to UV rays with adequate strength for exploitation of children in the specified age range. Slides are smooth, easy to clean and have no sharp edges and bulges. Slides are tested and have test protocol issued by licensed laboratory for compliance with the requirements of BDS 71-3 (Safety of toys - migration of certain elements).
Stairs, fences, decorative items
These elements are made of: fences - PVC foam; decorative elements - PVC foam; stairs - colored polyethylene, aluminum riffle; for climbing frames rocks, rubber pads and handles of colored polyethylene.
MAINTENANCE AND CONTROL OF EQUIPMENT a) Routine visual inspection
Routine visual inspection is done by the owner of the site and gives the opportunity to find out the obvious hazards that may be result of vandalism, use or weather conditions. For sites where the facilities are subject of use with increased load or vandalism is required daily control of this type. The visual inspection includes: the cleanliness of the facility, cleaning the terrain around the facility, surface finish, exposure of the foundation, sharp edges, missing parts, excessive wear and constructive integrity, maintaining the level of the sand to mark sign.
b) Functional control
Functional control is more detailed tests to check the functioning and stability of the facility, in particular for any wearing out. It has to be performed every 1 to 3 months from the owner of the site or authorized person.
Inspection scope includes:
- Chipping or other violations of surfaces;
- Corrosion of metal parts;
- Rough surfaces which could be a risk of injury as well as jutting out heads of bolts or nuts;
- Whether all corners, edges and protruding parts are rounded;
- If all joints are aligned to the base;
- Lack of caps on the ends of open pipes;
- Detachable connections;
- Protruding parts above the ground foundations;
- Corrosion and rot the foundations of facilities;
c) Annual main control
The annual basic controls is carried out to establish for the interval of 10 to 12 months, the overall level of safety of the facility, foundations and surfaces, such as the effects of weather, obviously rotting or corrosion and any changes in the level of safety of the equipment as a result of repairs made or added or replaced component.
DECLARATIE DE CONFORMITATE
Subsemnatul. Dyian Donchev în calitate de Director
Cozirog-D Ltd-Haskovo declar pe propria raspundere ca, urmatorul echipament:
1. Model CN-112 - Ansamblu de joaca
Respecta standardele și reglementările:
EN 1176-1 P Echipamente de joaca și suprafete de siguranta 1. Cerințe generale și metode de încercare echipamente
EN 1176-3 Echipamente de joaca și suprafete de siguranta 3: Cerințe specifice suplimentare și metode de încercare pentru tobogane;
EN 1176-11 Echipamente de joaca și suprafete de siguranta 11: Cerințe specifice suplimentare și metode de încercare pentru sfori.
Regula 1 I12.01.2009
Declarația este emisă pe baza:
Certificat M 0008 / 24.03.2010 Confirmarea că sistemul de management al calității implementat este cu ISO de verificare a conformității 9001: 2008 cererile pentru domeniul de aplicare sunt urmatoarele:
"Sisteme de management și de instalare a echipamentelor de joaca, de gardina si pentru parc - urban"
